Rubber Flexible Joint Length Measurement Guide

The Rubber Flexible Joint is a vital component used to absorb vibration, reduce noise, and compensate for thermal expansion and movement in piping systems. Understanding and measuring its overall length accurately is essential to ensure proper installation and alignment between flanges.

Length Measurement Guide:

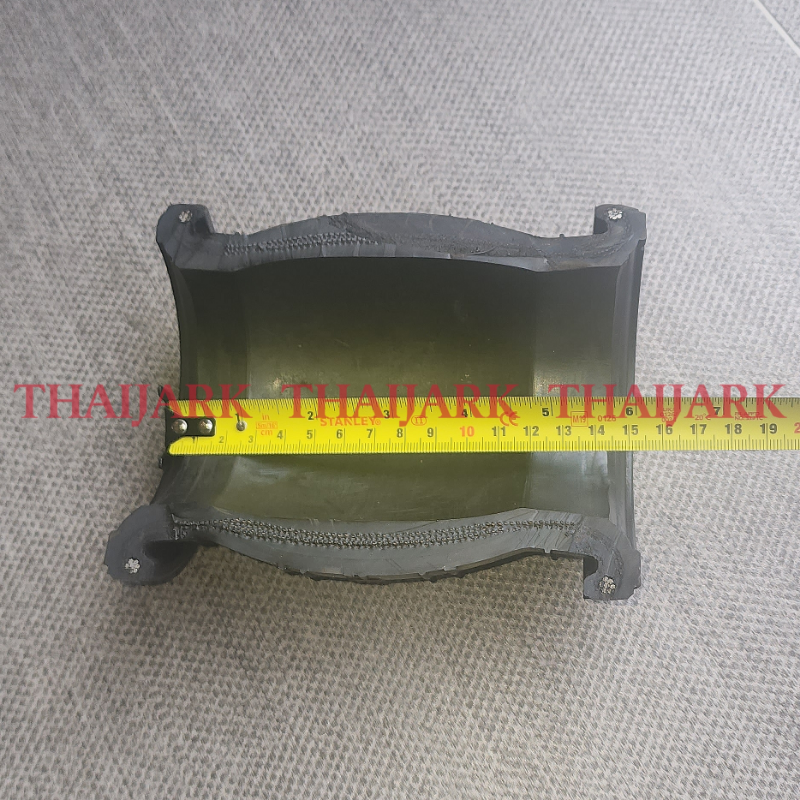

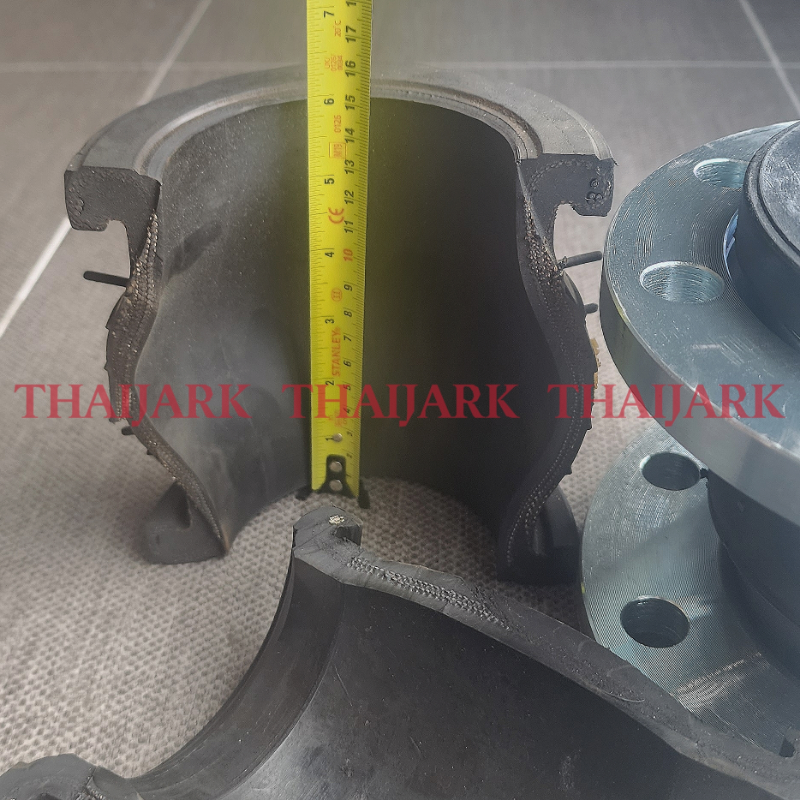

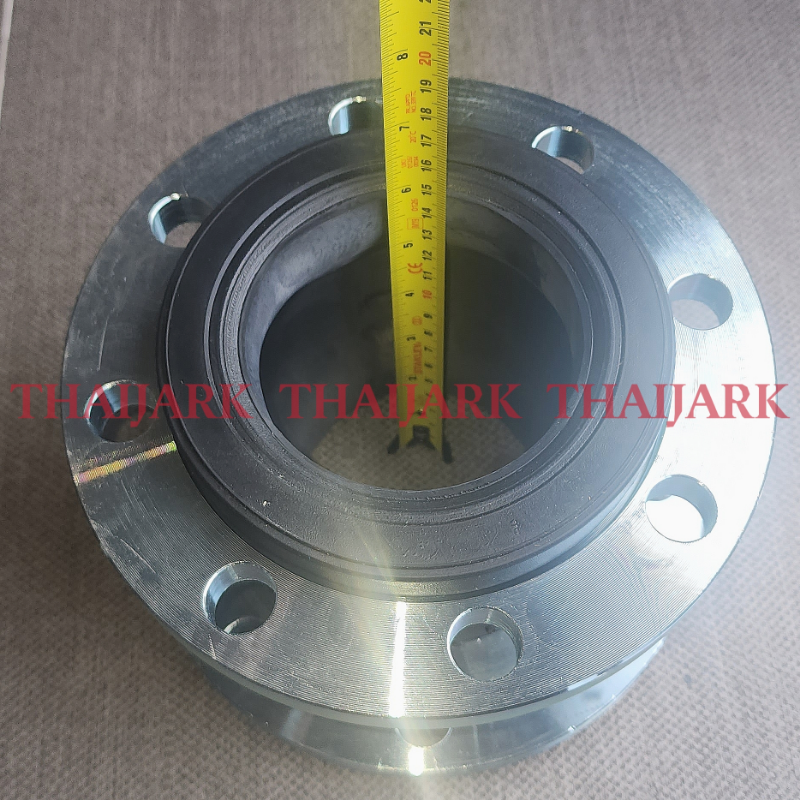

The length of a rubber flexible joint is measured as the distance between the two outer faces of the flanges (Face-to-Face Length) when the joint is in its neutral (unstressed) position. This measurement ensures that the joint is neither stretched nor compressed during installation.

Rubber Flexible Joint Length Measurement Guide
